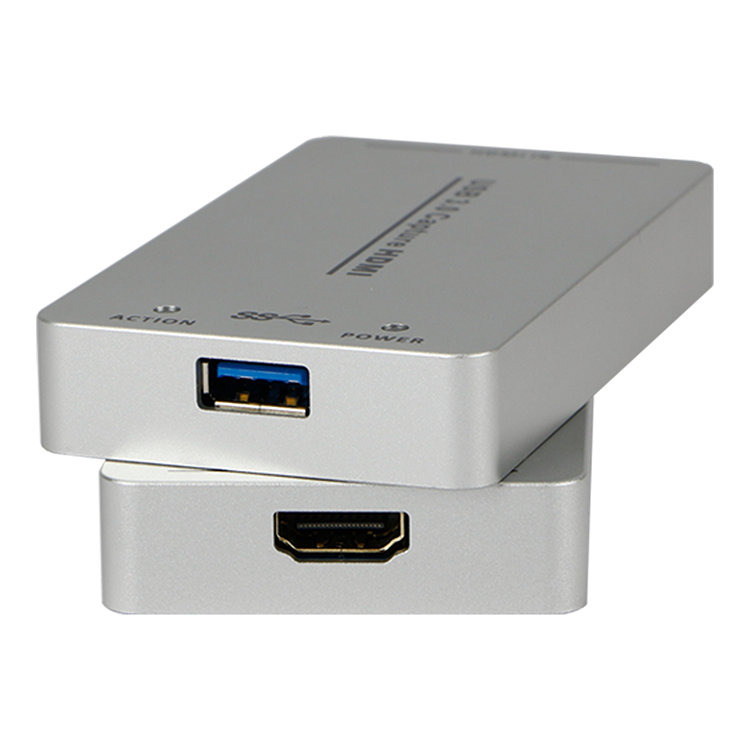

HDMI2USB 转换器

主机接口

USB3.0,*300-350MB/s,
USB2.0,*40MB/s

输入接口

HDMI

HDMI视频输入分辨率

480i,480p,576i,576p,720p50

720p60,1080i50,1080i60,

1080p24/25/30/50/60;

输出分辨率

640x480/720x480/720x576
768x576/800x600/1024x768/1280x720/1280x800

1280x960/1280x1024/1368x768/1440x900/

1600x1200/1680x1050/1920x1080/1920x1200

640x360/856x480/960x540/1024x576

视频帧率

25/29.97/30/50/59.94/60fps

采集口

标准UVC/UAC

操作系统

Windows7/ Windows Server 2008 R2/

Linux(Kernel version2.6.38 and above)/0SX[10.8 and above)

软件兼容

Windows MediaEncoder(Windows)

Adobe Flash Media Live Encoder (Windows,0SX)

Real Producer Plus(Windows)

VLC(Windows, 0sx, Linux)

QuickTime Broadcaster (OSX)

QuickTime Player (OSX)

Potplayer(Windows)and etc

开发迭代兼容性

DirectShow (Windows), DirectSound (Windows),

V4L2(Linux),ALSA (Linux) 0SX(QuickTime)

输出口

4xHDMIType A[19-pin母口]

外壳

金属外壳

颜色

银色

尺寸

98mm[长]×56mm[宽]×16mm[高]

工作温度

0-50°C

储存温度

-20-70°C

电原功耗

<=2.5W
