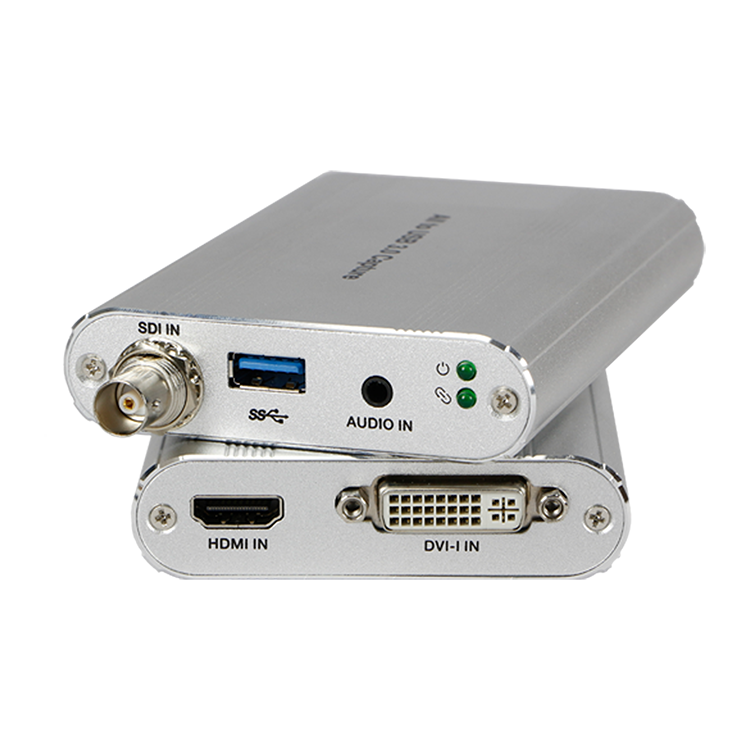

全能 USB 转换器

主机端口

1×USB [USB Type A, USB3.0-300~350MB/s]

输入端口

1×DVIIN

1×HDMI IN[19-pin female] 1×SDI IN[BNC]

1×AUDIO IN[3.5mm Stereo Mini-jack]

HDMl 输入分辨率

480i,480p,576i,576p,720p50/60,1080150/60, 1080p24/25/30/50/60

SDI输入分辨率

480i,576i,720p50/60,1080150/60,1080P24/25/30/50/60

VGT输入分辨率

640x480,800x600,1024x768,1280x1024,1400×1050, 1600x1200

DV输入分辨率

720x480i/p60Hz,720x576i/p50Hz,1280x720p50Hz, 1280x720p60Hz,1920x1080i/p50Hz,1920x1080i/p60Hz

YPbPr 输入分辨率

480i,576i,480p, 576p,720p50/60,1080l50/60

AV输入分辨率

480i,576i

输出分辨率

640×360,640×480,720×480,720×576,800×600, 856×480,960×540,1024×576,1024×768,1280×720, 1280×1024,1280×960,1280×800,1368×768,1440×900, 1600×1200，1680×1050，1920×1080,1920×1200

帧速率

125/29.97/30/50/59.94/60fps

音频和视频捕获

UVC（USB 视频类）和 UAC（USB 音频类）标准

支持操作系统

Windows 7/8/10,Linux (Kernel version 2.6.38 and above),OS×(10.8 and above)

软件兼容性

Windows Media Encoder (Windows),Adobe Flash Media Live Encoder(Windows,oS x),Real Producer Plus (Windows),vLc(Windows,OS x,Linux),QuickTime Broadcaster(Osx),QuickTime Player(OS x),Wirecast (Windows, oS X) and Potplayer (Windows)etc.

机身

外壳

金属外壳

颜色

银色

尺寸

114mm [W]x82mm[D]x22mm [H]

重量

168g
