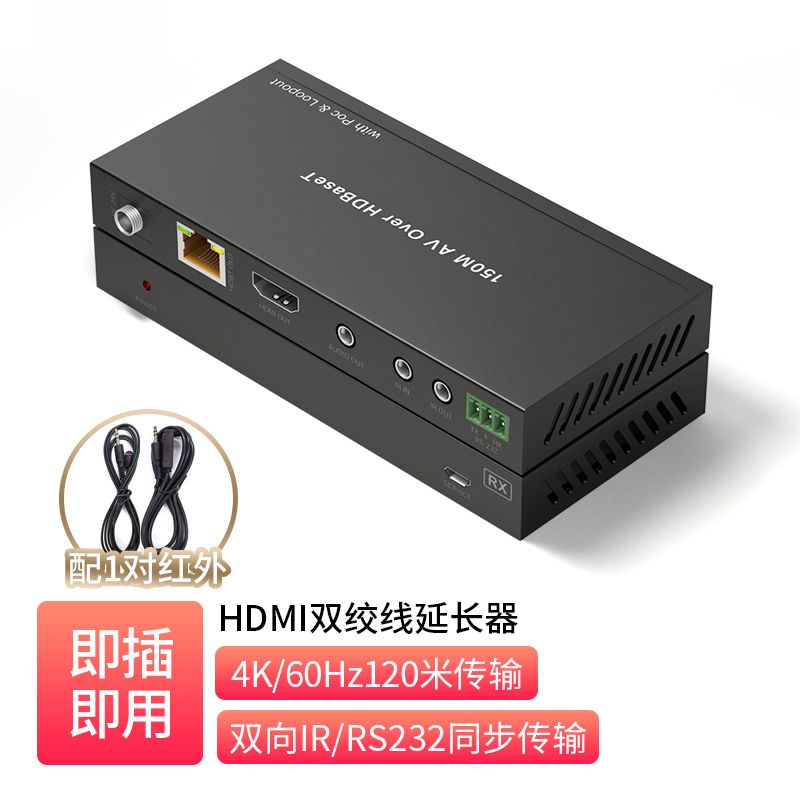

HDMI2.0 Twisted Pair 150m Receiver _ EB-B11AR-3R15

True 4K, 150m transmission, analog audio de-embedding, RS232/IR transmission, remote power

Description

Product Overview EB-B12R-3T15 and EB-B11AR-3R15 are a pair of extenders supporting HDMI2.0 4K signals over a single CATx for up to 150 m. Supports transmission of up to HDMI2.0 4K@60Hz 4:4:4 signals over 120 m and 1080P@60Hz signals over 150 m. Supports bidirectional IR, RS232 synchronous transmission and remote power. Supports HDR, HDR 10+, Dolby Vision, HLG and 3D, and common HDMI embedded audio formats. The receiver can also de-embed embedded stereo audio into analog stereo output. Product Features 1. Supports 4K signal transmission up to 120 m and 1080P signal transmission up to 150 m. 2. Complies with HDMI2.0b, HDCP2.2/1.4 and DVI1.0 standards. 3. The transmitter is equipped with an HDMI loop-out. 4. Supports video formats up to 4K@60Hz 8bit RGB/YCbCr4:4:4 and 4K@60Hz 12bit YCbCr4:2:0. 5. Supports HDR10+, Dolby Vision, HLG and 3D. 6. Supports up to 7.1-channel audio data in common HDMI formats, such as PCM, Dolby TrueHD, DTS-HD Master Audio and Dolby Atmos. 7. Supports de-embedding the stereo audio embedded in HDMI to stereo. 8. Supports synchronous transmission of 4K video, embedded audio, bidirectional IR and RS232. 9. Full ESD protection on all ports. 10. External power ada…
