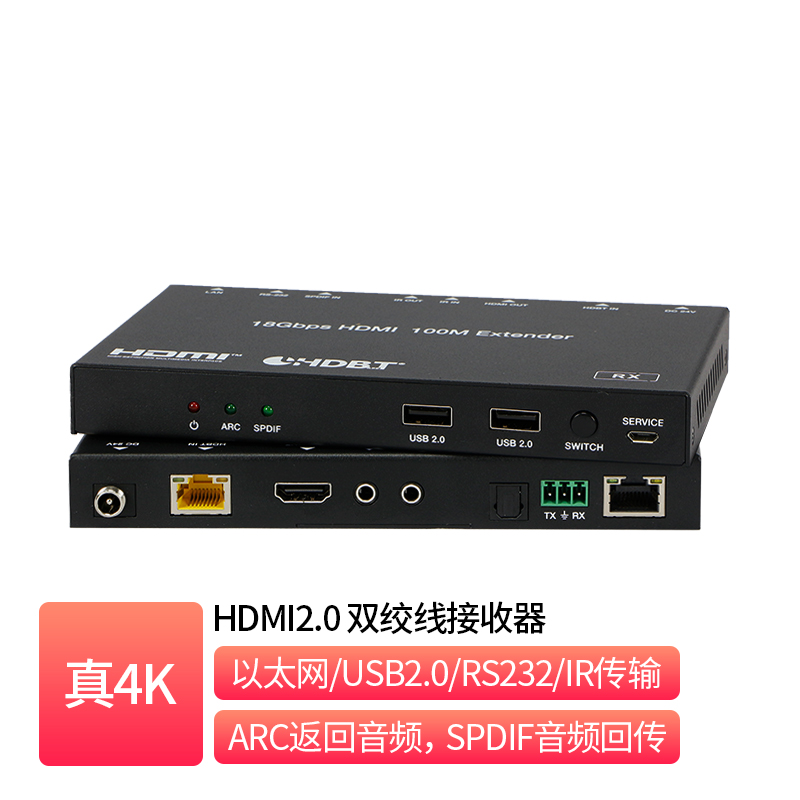

HDMI2.0 Twisted Pair with USB and Network 100m Receiver _ EB-B11RNU-3R10

True 4K, 100m transmission, Ethernet/USB2.0/RS232/IR transmission, ARC audio return, SPDIF audio return, remote power

Description

Product Overview EB-B11ARNU-3T10 and EB-B11RNU-3R10 are a pair of extenders supporting HDMI2.0 4K signals over a single CATx for up to 90 m. Supports transmission of up to HDMI2.0 4K@60Hz 4:4:4 signals over 90 m and 1080P@60Hz signals over 100 m. Supports bidirectional IR, RS232, 100M Ethernet, USB2.0 and ARC audio return synchronous transmission as well as remote power. Supports HDR, HDR 10+, Dolby Vision, HLG and 3D; ARC audio return can be de-embedded into Toslink digital optical or analog stereo output, and HDMI embedded audio can also be de-embedded for output. Product Features 1. Supports 4K signal transmission up to 90 m and 1080P signal transmission up to 100 m. 2. Complies with HDMI2.0b, HDCP2.2/1.x and DVI1.0 standards. 3. Supports video formats up to 4K@60Hz 8bit RGB/YCbCr4:4:4 and 4K@60Hz 12bit YCbCr4:2:0. 4. Supports HDR10+, Dolby Vision, HLG and 3D. 5. Supports up to 7.1-channel embedded audio data such as LPCM, Dolby TrueHD, DTS-HD Master Audio and Dolby Atmos, and supports ARC audio return. 6. Supports returning ARC audio or SPDIF digital audio to the transmitter. 7. Supports synchronous transmission of ultra-HD video, embedded audio, bidirectional IR, RS232, 100M E…
