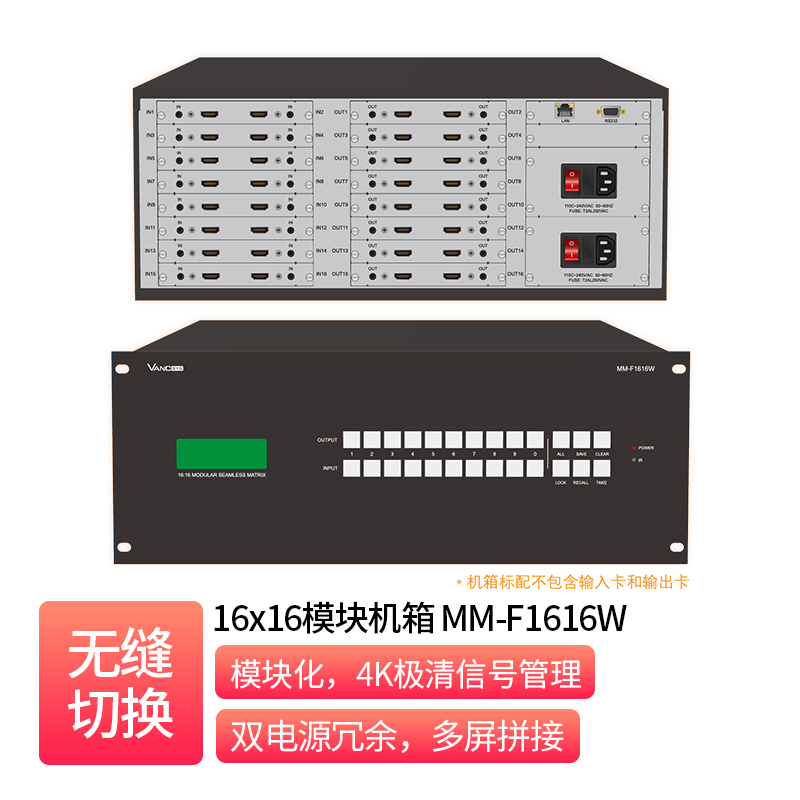

16x16 Modular Dual-Channel frame _ MM-F1616W

4K60 seamless switching, multi-screen splicing, multiple card types, dual redundant power supplies

Description

Product Overview MM-F1616W is a modular matrix chassis that can manage up to 16 input and 16 output signals and supports arbitrary splicing display of up to 4x4. Supports up to 4K@60Hz 4:4:4 4K resolution. The manageable signals cover HDMI, DVI, DP, SDI, VGA, YPbPr, CVBS, digital audio, analog audio, HDBaseT and H.26x, and it provides cross-point non-blocking seamless switching with dual redundant power supplies. The product is suitable for sites with diverse signal types, dispersed equipment locations and strict requirements on product functionality and stability. Product Features 1. Supports 8 input cards and 8 output cards, with signal management up to 4K@60Hz 4:4:4, seamless switching and no blackout or flicker. 2. Supports mixed insertion and use of various 4K/2K cards such as HDMI/DVI/SDI/VGA/YPbPr/CVBS/HDBaseT/Fiber, with non-blocking routing switching. 3. Single-stage signal processing for high image quality, with latency as low as 32ms. 4. Inputs support N+1 active/standby hot backup redundancy, with automatic switching between primary and standby ports. 5. Outputs feature resolution conversion, with independently adjustable output resolution. 6. Supports setting of multip…
