4K60 HDBaseT Quad-Channel Input Card _ MM2-C40W-IB-10

4K60 input, standard HDBaseT, seamless switching, 100m transmission, PoC power insertion

Description

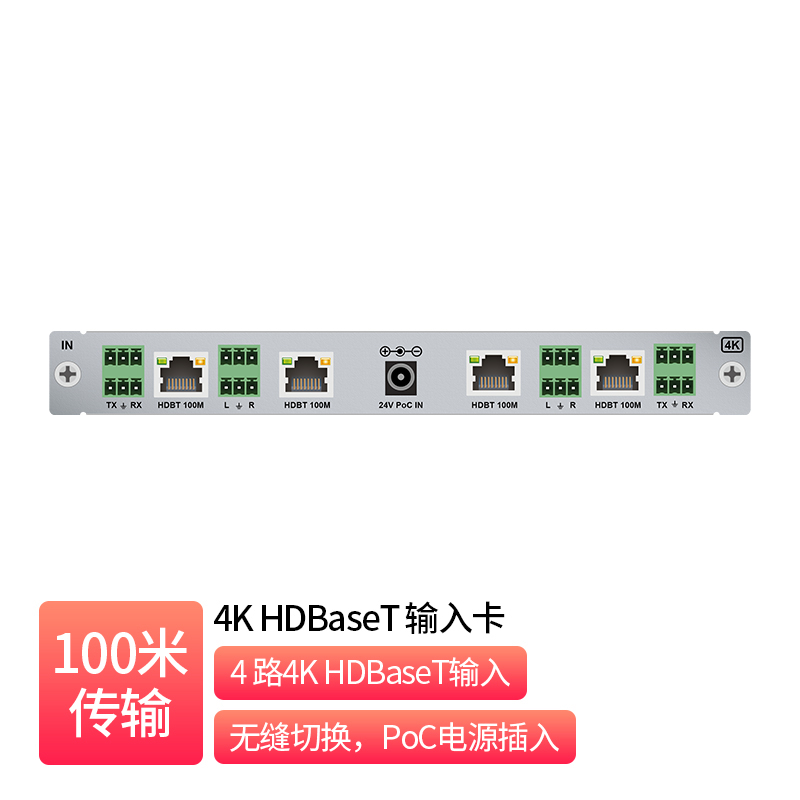

Product Overview MM2-C40W-IB-10 is an input card capable of receiving 4 channels of HDBaseT 4K signals, 4 channels of analog audio and 4 bidirectional RS232 interfaces. Provides 4 HDBaseT input channels capable of receiving signals at up to 2160P resolution, supporting signals with or without HDCP. Video and audio signals can be transmitted in sync over up to 70 m at 4K and up to 100 m at 1080P. With 4 analog audio and RS232 inputs, analog audio and RS232 serial signals can be embedded into HDBaseT for synchronous transmission. Product Features 1. 4 x standard 4K HDBaseT signal input. 2. 4 x analog audio input + 4 x bidirectional RS232 ports that can be embedded in HDBaseT for synchronous transmission. 3. Supports transmission distance of 70 m for 4K and 100 m for 1080P. 4. Resolution up to 4K60 4:4:4, compatible with HDCP2.2, and supports HDCP conversion. 5. Supports pass-through of PCM2-channel embedded audio. 6. Supports internal signal conversion. 7. Supports PoC power insertion for remote power feeding to the transmitter. Related Products
