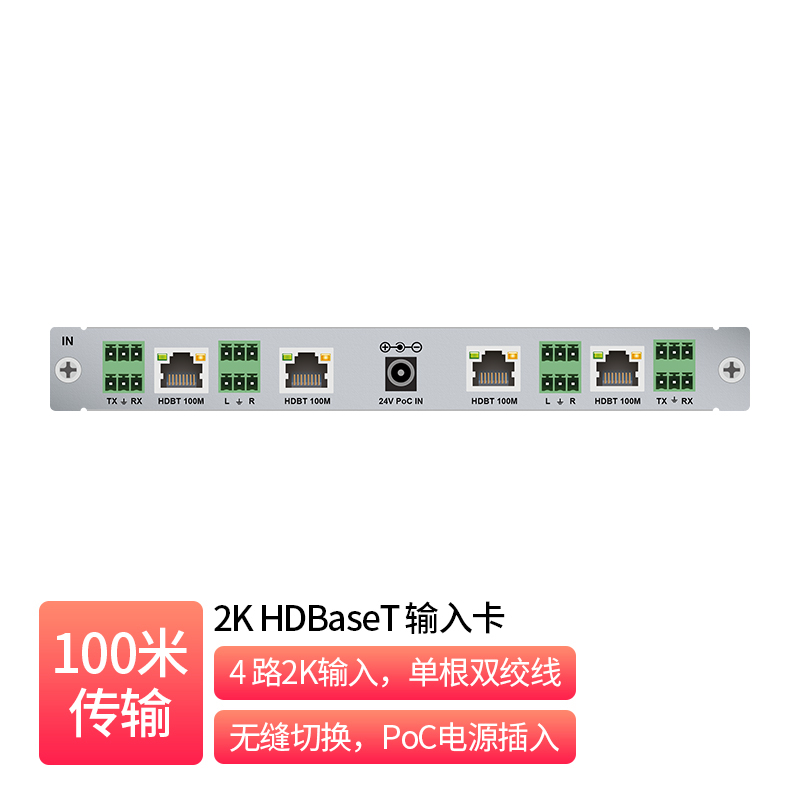

2K HDBaseT Quad-Channel Input Card _ MM2-C40W-IB1-10

2K input, standard HDBaseT, seamless switching, 100m transmission, PoC power insertion

Description

Product Overview MM2-C40W-IB1-10 is an input card capable of receiving 4 channels of HDBaseT 2K signals, 4 channels of analog audio input and 4 bidirectional RS232 interfaces. Provides 4 HDBaseT input channels capable of receiving signals at up to 1200P resolution, supporting signals with or without HDCP. Video and audio signals can be transmitted in sync over a distance of up to 100 m at 1080P. With 4 analog audio and RS232 inputs, analog audio and RS232 serial signals can be embedded into HDBaseT for synchronous transmission. Product Features 1. 4 x standard 2K HDBaseT signal input. 2. 4 x analog audio input + 4 x bidirectional RS232 ports that can be embedded in HDBaseT for synchronous transmission. 3. Supports transmission distance up to 100 m. 4. Resolution up to 1200P, compatible with HDCP2.2, and supports HDCP conversion. 5. Supports pass-through of PCM2-channel embedded audio. 6. Supports internal signal conversion. 7. Supports PoC power insertion for remote power feeding to the transmitter. Related Products
