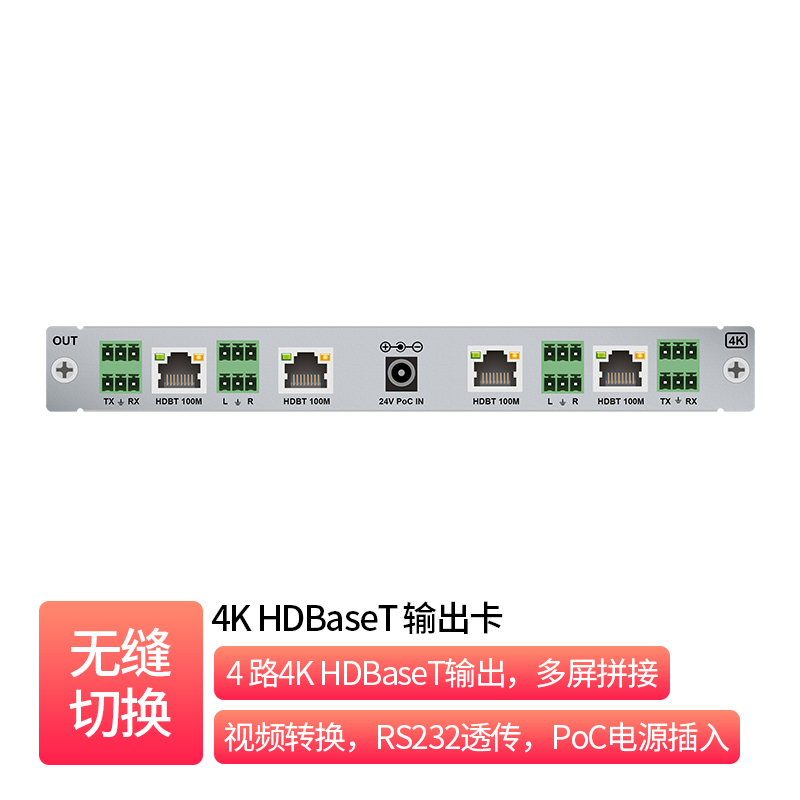

4K60 HDBaseT Quad-Channel Output Card _ MM2-C04W-OB-10

4K output, standard HDBaseT, seamless switching, video conversion, multi-screen splicing, analog audio output, PoC power insertion

Description

Product Overview MM2-C04W-OB-10 is an output card capable of outputting 4 channels of HDBaseT 4K signals, 4 channels of analog audio and 4 bidirectional RS232 interfaces. Provides 4 standard HDBaseT CATx output channels capable of outputting signals at up to 2160P resolution, supporting signals with or without HDCP. Video and audio signals can be transmitted in sync over a distance of up to 100 m. With 4 analog audio channels and 4 bidirectional RS232, analog audio and RS232 serial signals can be embedded into HDBaseT for synchronous transmission. Product Features 1. 4 x standard 4K HDBaseT CATx signal output. 2. 4 x analog audio output + 4 x bidirectional RS232 ports that can be embedded in HDBaseT for synchronous transmission. 3. Supports 4K signal transmission up to 80 m and 1080P signal transmission up to 100 m. 4. Resolution up to 2160P, compatible with HDCP2.2, and supports HDCP conversion. 5. Supports pass-through of PCM2-channel embedded audio. 6. Supports resolution conversion output, seamless switching and multi-screen splicing. Related Products
