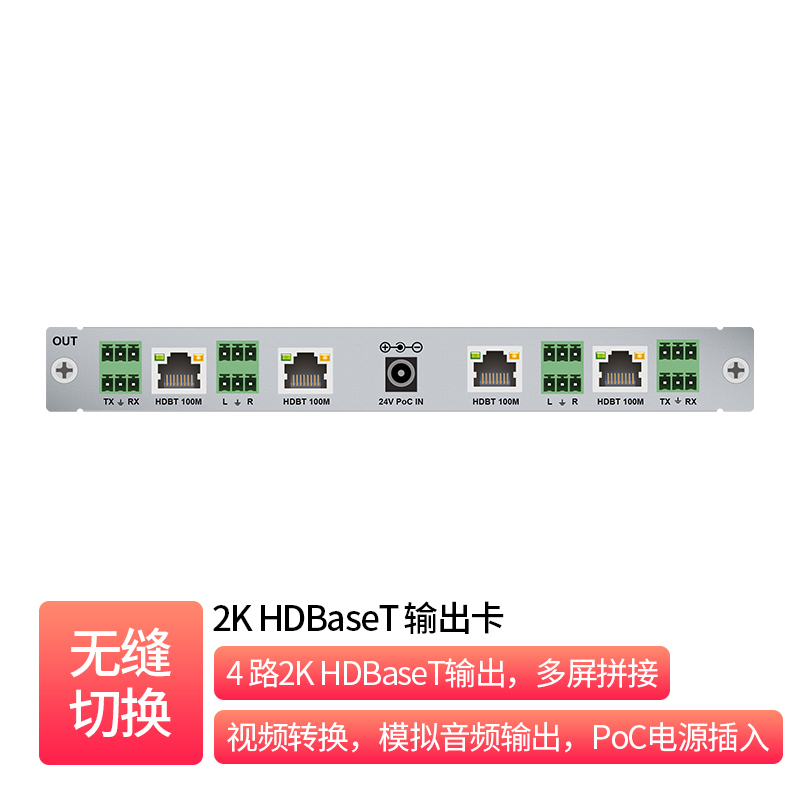

2K HDBaseT Quad-Channel Output Card _ MM2-C04W-OB1-10

2K output, standard HDBaseT, seamless switching, video conversion, multi-screen splicing, analog audio output, PoC power insertion

Description

Product Overview MM2-C04W-OB1-10 is an output card capable of outputting 4 channels of HDBaseT 2K signals, 4 channels of analog audio and 4 bidirectional RS232 interfaces. Provides 4 standard HDBaseT CATx output channels capable of outputting signals at up to 1200P resolution, supporting signals with or without HDCP. Video and audio signals can be transmitted in sync over a distance of up to 100 m. With 4 analog audio channels and 4 bidirectional RS232, analog audio and RS232 serial signals can be embedded into HDBaseT for synchronous transmission. Product Features 1. 4 x standard 2K HDBaseT CATx signal output. 2. 4 x analog audio output + 4 x bidirectional RS232 ports that can be embedded in HDBaseT for synchronous transmission. 3. Supports 1080P signal transmission up to 100 m. 4. Resolution up to 1200P, compatible with HDCP1.4, and supports HDCP conversion. 5. Supports pass-through of PCM2-channel embedded audio. 6. Supports resolution conversion output, seamless switching and multi-screen splicing. Related Products
