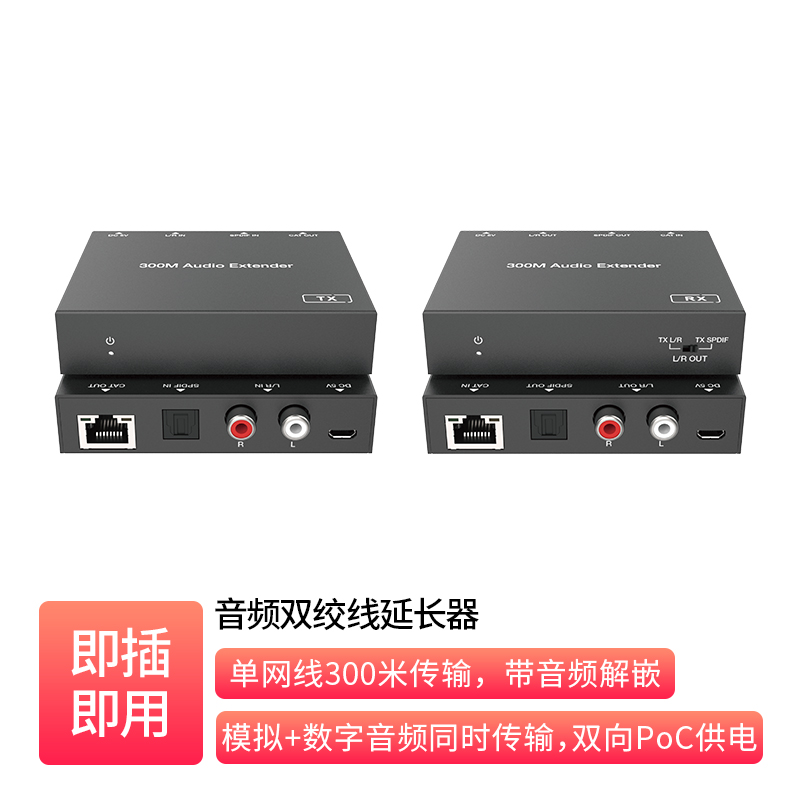

Audio Twisted Pair Extender _ EA-B22DA-TR30

Single network cable 300m transmission, simultaneous analog + digital audio transmission, with audio de-embedding, bidirectional PoC power

Description

Product Overview EA-B22DA-TR30 is an audio extender that can simultaneously transmit 1 set of analog stereo audio and 1 set of optical S/PDIF digital audio over a single CATx for distances of 300 m (48kHz), 150 m (96kHz) and 100 m (192kHz). The receiver has a built-in digital-to-analog converter and can optionally convert PCM2.0 CH optical digital audio into analog audio output. Bidirectional PoC, with power supplied from either end. Product Features 1. Transmits 1 set of analog stereo and 1 set of optical digital audio simultaneously over a single CAT network cable up to 300 m (48kHz), 150 m (96kHz) and 100 m (192kHz) 2. Receiver has built-in DAC, can selectively de-embed and output the sender's PCM2.0 CH optical audio, or pass through the sender's analog stereo audio output 3. Audio sampling rates supported: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 76.4kHz and 192 kHz, up to 24bit 4. Supports LPCM, DTS, Dolby Digital and Dolby Digital Plus (pass-through) 5. Bidirectional POC, powered from either the sender or receiver end 6. Low power consumption of 1.5W, USB DC 5V power 7. Plug and play, stable high-fidelity audio output Related Products
