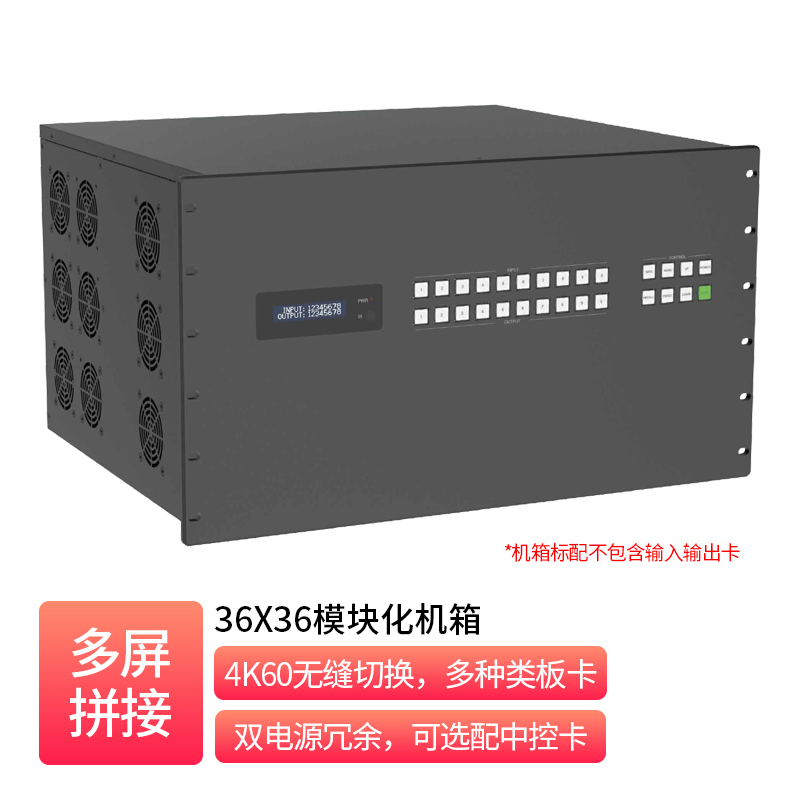

36x36 Modular Quad-Channel frame _ MM2-F3636W

Seamless switching, multi-screen splicing, multiple card types, dual redundant power supplies, optional structured control

Description

Product Overview MM2-F3636W is a modular matrix chassis that can house a built-in structured control card. It can manage up to 36 input and 36 output signals and supports arbitrary splicing display of up to 6x6. Supports up to 4K@60Hz 4:4:4 4K resolution. The manageable signals cover HDMI, DVI, DP, SDI, VGA, YPbPr, CVBS, digital audio, analog audio, HDBaseT and H.26x, and it provides cross-point non-blocking seamless switching. The product is suitable for sites with diverse signal types, dispersed equipment locations and strict requirements on product functionality and stability. Product Features 1. Supports 9 input cards and 9 output cards, with up to 4K@60Hz 4:4:4 signal management, seamless switching with no blackout or flicker. 2. 4K and 2K cards of various types, including HDMI/DVI/SDI/VGA/composite video/component video/HDBaseT/fiber, can be mixed and matched. 3. Supports outputs at various resolutions to meet the needs of different types of display equipment. 4. Built-in image quality enhancement with adjustable output image quality, and built-in signal equalization, signal restoration and signal amplification circuits. 5. Gen-Lock multi-screen splicing technology with multi…
