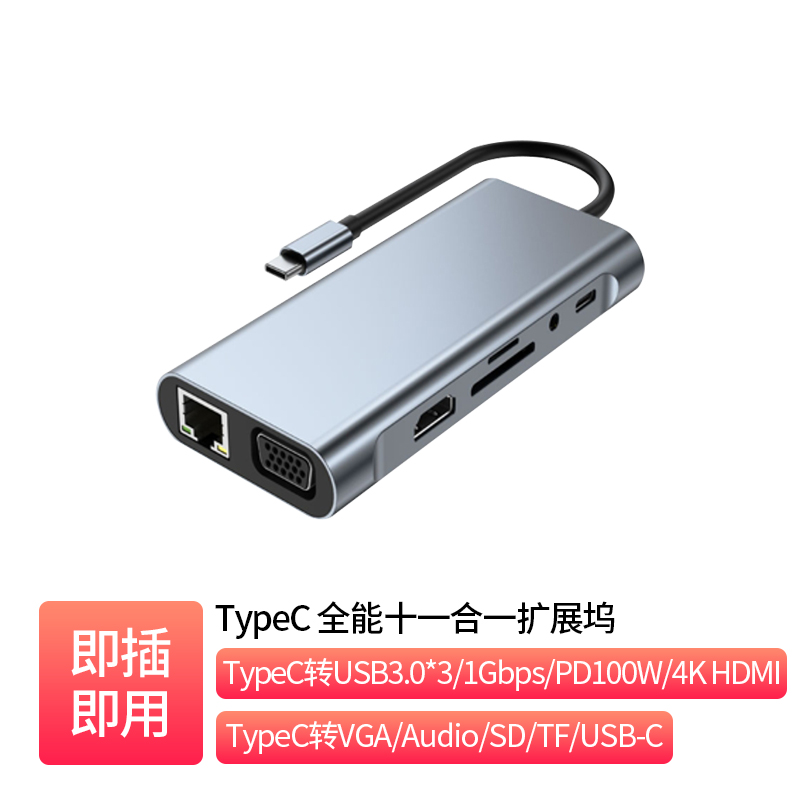

[Universal] Type-C All-in-One 11-in-1 Docking Station _ TC-S1131

Type-C to USB3.0 x3 / 1Gbps / PD100W / 4K HDMI / VGA / Audio / SD / TF / USB-C

Description

Product Overview TC-S1131 is a versatile TypeC hub, also called a USB docking station. It adds to a single TypeC port 1 1Gbps RJ45 network port, 3 TypeA USB3.0 ports, 1 TypeC USB3.0 port, 1 HDMI port with up to 4K30Hz audio/video output, 1 VGA port with up to 1080P video output, 1 3.5 stereo audio output and 1 SD/TF shared card reader slot, and provides a PD100W fast-charging port that supplies power to the host device when an external power supply is connected. The docking station is compact and portable. Product Features 1. TypeC docking station with attached cable, 160 mm cable length. 2. Aluminum alloy gray + ABS material. 3. 3x TypeA USB3.0 ports, 5.0Gbps (640MB/s). 4. 1x TypeC USB3.0 port, 5.0Gbps (640MB/s). 5. 1x RJ45 standard 1Gbps Ethernet port with network status indicator. 6. 1x HDMI interface supporting audio and video output up to 4K@30Hz. 7. 1x VGA interface supporting video output up to 1920x1080P60. 8. 1x 3.5 mm audio jack supporting connection of stereo speakers or headphones with microphone. 9. 1x shared SD/TF card slot supporting data reading and writing for standard SD and TF cards. 10. 1x PD4.0 fast-charging port supporting up to 100W. 11. Hot-swappable and plu…
