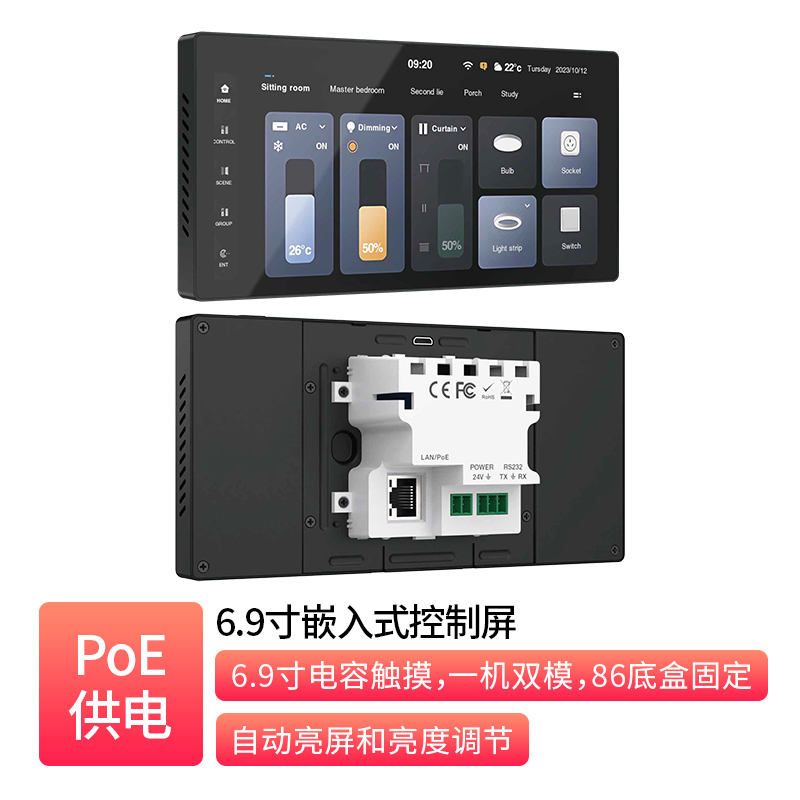

6.9-inch Wall Control Panel _ NG-ETW06P

6.9-inch capacitive touch, dual-mode operation, 86 back box mounting, automatic screen wake and brightness adjustment, PoE powered

Description

Product Overview NG-ETW06P is a programmable embedded control panel equipped with a 1440x720 capacitive touch screen. With no built-in battery and no Wi-Fi, Bluetooth or other wireless communication components, it can be fixed on a standard 86 back box. It can be used in conference rooms, multi-function halls, training centers, exhibition centers, studios and other fields. The one-unit dual-mode design architecture allows this control panel to serve as either a control host or an extended touch screen. Product Features 1. Linux kernel system, 1.8Ghz processor, 4GB DDR4 memory, 32GB EMMC flash. 2. Adopts BS and CS dual-architecture redundancy, supports password-protected access to the host system management web page, and supports management and operation from PC, mobile phone, Apple and Android terminals. 3. 6.9-inch capacitive touch screen with 1440*720 (2:1) resolution, embedded installation in a standard 86 back box. 4. Built-in light and proximity sensors automatically wake the screen or adjust touch screen brightness according to ambient light and approach distance (reserved function). 5. Can be configured as a control host that independently runs logic control programs, or as …
