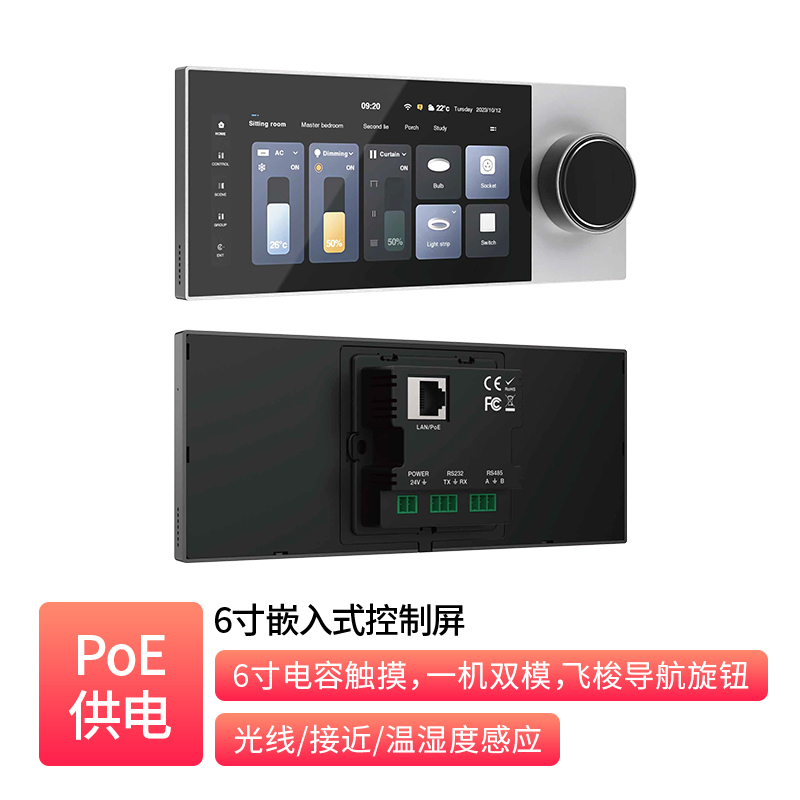

6-inch Wall Control Panel _ NG-ETW06R
6-inch capacitive touch, dual-mode operation, shuttle navigation knob, light/proximity/temperature and humidity sensing, PoE powered
Description
Product Overview NG-ETW06R is a programmable embedded control panel equipped with a 1440x720 capacitive touch screen and a jog navigation knob, with no built-in battery and no Wi-Fi, Bluetooth or other wireless communication components. Built-in light, proximity, temperature and humidity sensors. It can be fixed on a standard 86 back box. It can be used in conference rooms, multi-function halls, training centers, exhibition centers, studios and other fields. The one-unit dual-mode design architecture allows this control panel to serve as either a control host or an extended touch screen. Product Features 1. Linux kernel system, 1.8Ghz processor, 4GB DDR4 memory, 32GB EMMC flash. 2. Adopts BS and CS dual-architecture redundancy, supports password-protected access to the host system management web page, and supports management and operation from PC, mobile phone, Apple and Android terminals. 3. 6-inch capacitive touch screen with 1440*720 (2:1) resolution, embedded installation in a standard 86 back box. 4. Provides 1 shuttle navigation knob whose function can be customized by programming. 5. Built-in light, proximity, temperature and humidity sensors automatically wake the screen or…
