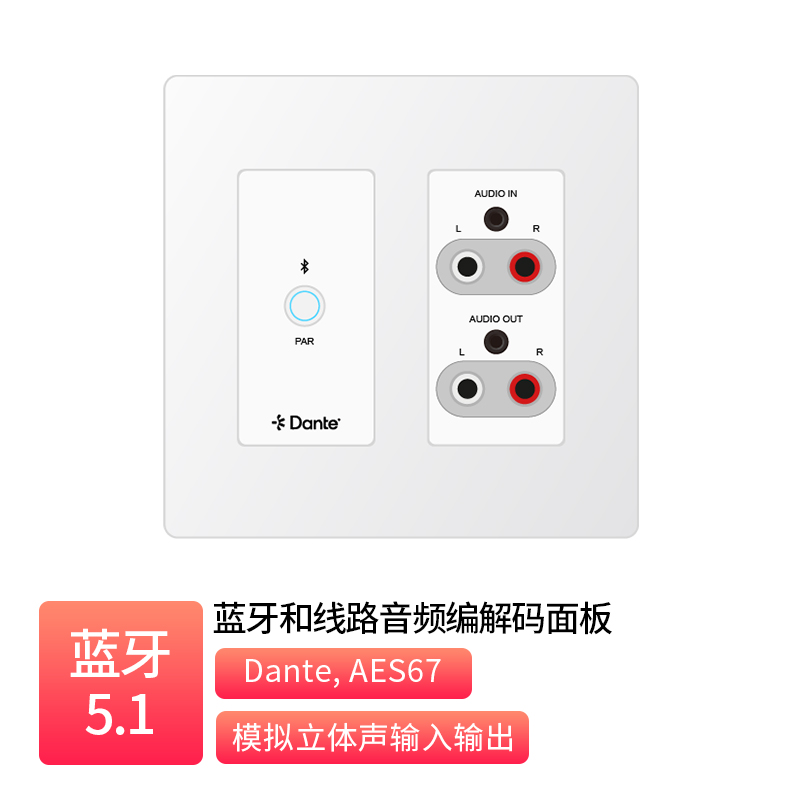

Bluetooth and Line Audio Codec Panel _ AT-P22BLD

Dante, AES67, Bluetooth 5.1, analog stereo input and output

Description

Product Overview AT-P22BLD is a panel-type Dante Bluetooth and analog audio codec that can convert Bluetooth audio or analog audio to Dante, and convert Dante digital audio to 2-channel analog audio. It supports audio gain and volume adjustment and supports PoE function. Product Features 1. Dante® network wall plate interface supporting Bluetooth or analog RCA and 3.5mm audio input and RCA and 3.5mm output 2. Configurable Bluetooth name for quick device discovery 3. Input can be switched among Bluetooth, RCA and 3.5mm interfaces 4. RCA and 3.5mm can output simultaneously 5. Analog input sensitivity adjustable via control software: +24dBu, +4dBu, 0dBu, -10dBV, -28dBV 6. Output gain adjustable via control software: +18dBu, +4dBu, 0dBu, 0dBV, -10dBV 7. Bluetooth supports up to 2 devices connected simultaneously 8. Bluetooth supports volume control, volume range 0-16 9. Supports Bluetooth playback control: previous/next track and pause 10. Bluetooth supports displaying album information of the audio source 11. Supports Bluetooth software upgrade via USB-C port 12. Dante® supports 44.1, 48, 88.2 and 96kHz sampling rates @16, 24 or 32bit 13. Configurable Dante® device latency (2, 5 or 10…
