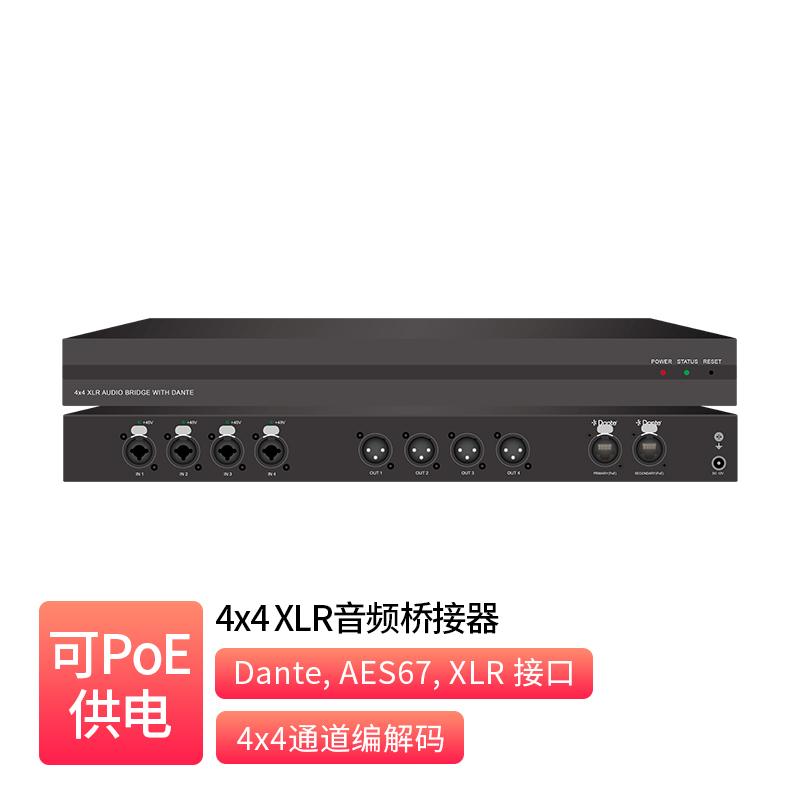

4x4 XLR Audio Bridge _ AT-B44XD

Dante, AES67, XLR interface, 4x4 channel encoding and decoding, PoE powered

Description

Product Overview AT-B44XD is a Dante® transmitter based on the DEP solution, supporting 4 analog audio inputs and 4 analog audio outputs. It supports mutual conversion between XLR analog audio and Dante® digital audio. The analog input ports use XLR/TRS combo connectors and support balanced and unbalanced audio input. Analog inputs support 48V phantom power and 6-level sensitivity adjustment, while analog outputs support 5-level output adjustment. The product has built-in audio signal processing (DSP) for gain, equalizer and delay control. It can be configured and operated through the internal Web GUI or standard Dante® Controller software. Supports Dante® primary and secondary networks, with backup over the secondary network. The product can be powered by dual PoE+ (Power over Ethernet) and a local DC power supply. Product Features 1. 4 balanced analog inputs (XLR), supports XLR/TRS combo jack connection 2. 4 balanced analog outputs (XLR) 3. Supports Dante® 4x4 and AES67 audio input/output 4. Supports balanced/unbalanced analog audio input/output 5. 2 RJ45 Dante® ports with redundancy and dual PoE+ power, supporting the Dante® primary and secondary networks 6. Each input supports …
