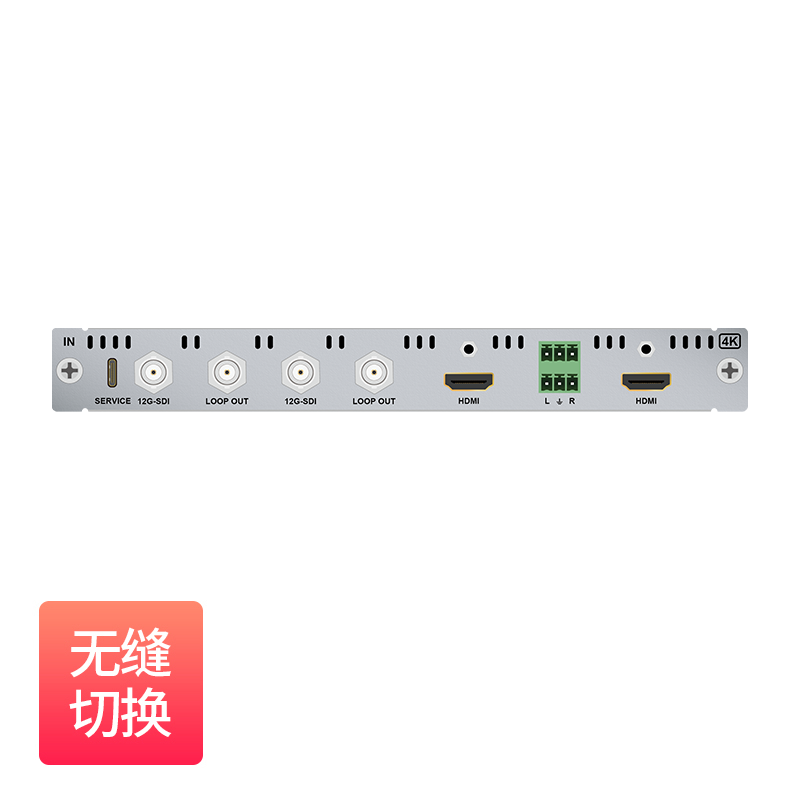

12G-SDI Hybrid Quad-Channel Input Card _ MM2-C40W-ISH

2-channel 12G-SDI + 2-channel HDMI, seamless switching, video conversion, analog audio input

Description

Product Overview MM2-C40W-ISH is a hybrid input card for 12G-SDI and HDMI2.0 4K signals and 2 channels of analog audio. Provides 2 12GSDI input channels with loop-out and 2 HDMI2.0 4K input channels, capable of receiving signals at up to 4K@60Hz 4:4:4 resolution, supporting signals with or without HDCP. With 2 analog stereo audio inputs, analog stereo audio can be embedded into HDMI or used to replace the embedded HDMI audio for synchronous transmission and switching. Product Features 1. 2 x 12G-SDI inputs with loop-out and 2 x HDMI2.0 4K signal inputs, compatible with 3G-SDI, 6G-SDI and DVI. 2. 2 x analog stereo audio inputs. 3. Resolution up to 4K@60Hz RGB and YPbPr 4:4:4, compatible with HDCP2.2 and supports HDCP conversion. 4. Supports pass-through of 2-channel PCM embedded audio. 5. Supports conversion of analog stereo + DVI into an HDMI signal. 6. Analog audio signals can be used to replace the existing HDMI embedded audio. 7. Supports internal signal conversion. Related Products
