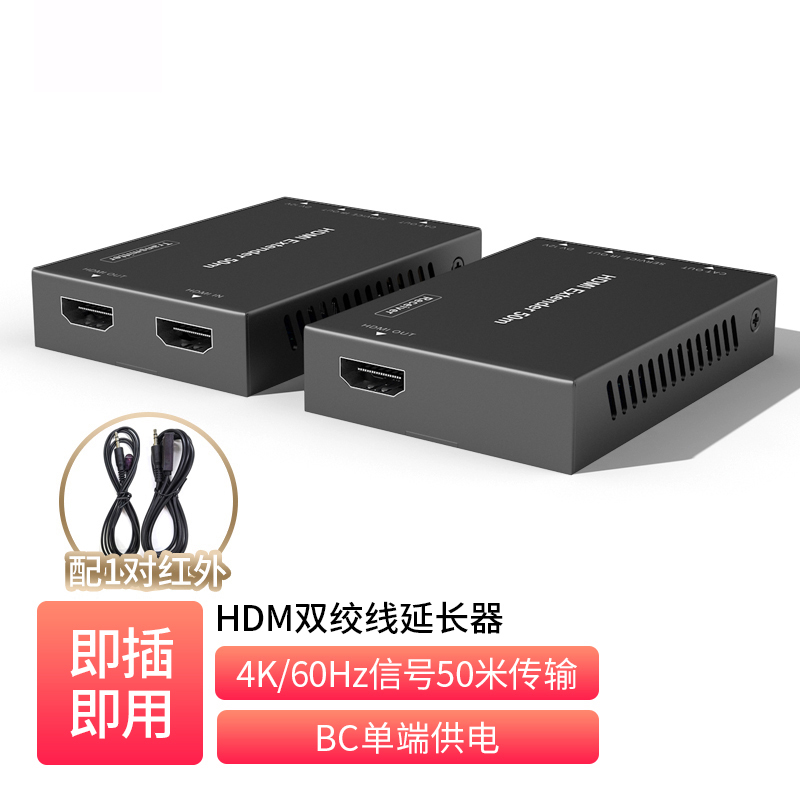

HDMI2.0 Twisted Pair 50m Extender _ ET-B12i-TR5

True 4K, 50m transmission, local loop-out, reverse IR transmission, remote power

Description

Product Overview ET-B12i-TR5 is a pair of extenders that support HDMI2.0 4K signals over a single CATx up to 50 m. Supports HDMI2.0 4K@60Hz 4:4:4 signals up to 50 m. The transmitter features an HDMI loop-out, supports one-way IR control from the display to the signal source, and supports HDR, single-end power and EDID pass-through. Product Features 1. Complies with HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 specifications. 2. Supports resolution up to 4K2K@60Hz 4:4:4 and supports HDR. 3. Extends signal transmission distance up to 50 m over a single Cat5e/6 cable. 4. Supports 1 x HDMI loop-out (transmitter end). 5. One-way IR control from the display end to the signal source. 6. Supports up to 7.1-channel audio data in common HDMI formats, such as LPCM, Dolby TrueHD, DTS-HD Master Audio, DTS HD-HRA and DTS:X. 7. Supports PoC single-end power and EDID pass-through. Related Products
