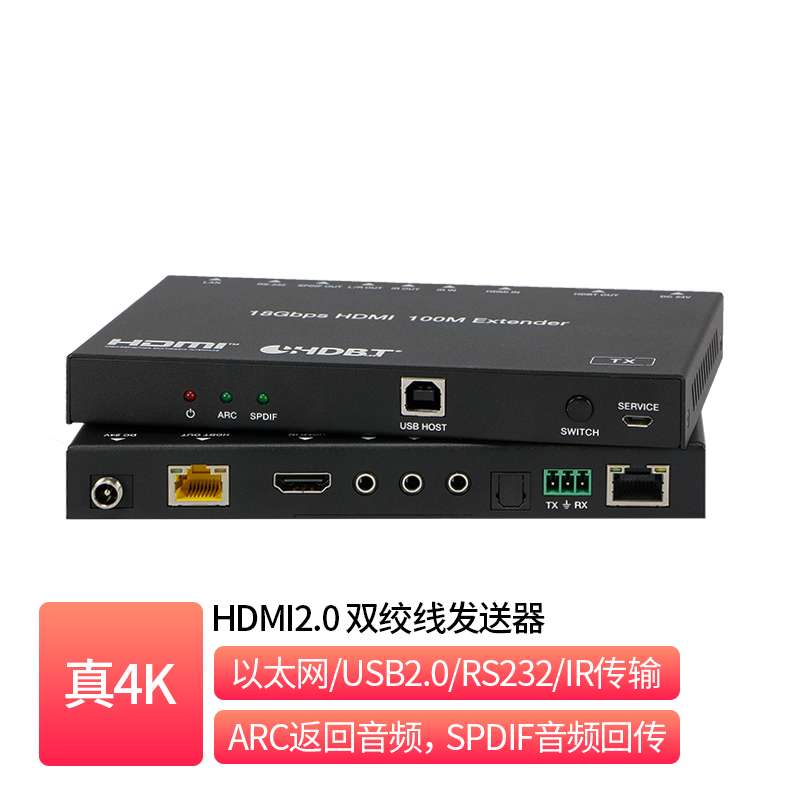

HDMI2.0 Twisted Pair with USB and Network 100m Transmitter _ EB-B11ARNU-3T10

True 4K, 100m transmission, Ethernet/USB2.0/RS232/IR transmission, ARC audio return, SPDIF audio return, audio de-embedding, remote power

Description

Product Overview EB-B11ARNU-3T10 and EB-B11RNU-3R10 are a pair of extenders supporting HDMI2.0 4K signals over a single CATx for up to 90 m. Supports transmission of up to HDMI2.0 4K@60Hz 4:4:4 signals over 90 m and 1080P@60Hz signals over 100 m. Supports bidirectional IR, RS232, 100M Ethernet, USB2.0 and ARC audio return synchronous transmission as well as remote power. Supports HDR, HDR 10+, Dolby Vision, HLG and 3D; ARC audio return can be de-embedded into Toslink digital optical or analog stereo output, and HDMI embedded audio can also be de-embedded for output. Product Features 1. Supports 90 m transmission for 4K signals and 100 m transmission for 1080P signals 2. Supports HDMI2.0b, HDCP2.2/1.x and DVI1.0 standards 3. Supports video formats up to 4K@60Hz 8bit RGB/YCbCr4:4:4, 4K@60Hz 12bit YCbCr4:2:0 4. Supports HDR10+, Dolby Vision, and HLG and 3D 5. Supports up to 7.1-channel embedded audio data, such as LPCM, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, etc., and supports ARC return audio 6. Supports de-embedding HDMI embedded audio or ARC return audio to Toslink digital optical or 3.5 analog stereo output 7. Supports synchronous transmission of ultra-HD video, embedded …
