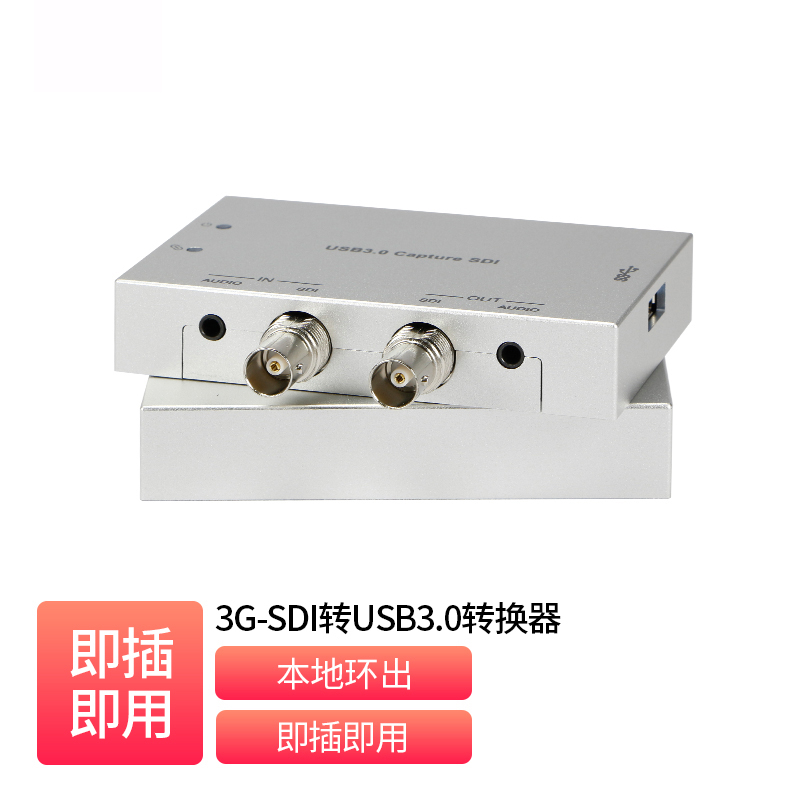

SDI to USB Converter _ CS-B12A-U1

2K 3G-SDI/HD-SDI/SD-SDI to 2K USB UVC + UAC, local loop-out, DC5-12V powered

Description

Product Overview CS-B12A-U1 is a signal converter from 3G-SDI to USB3.0 with local loop-out and audio. It can convert one 3G-SDI plus one analog audio into standard USB UVC and UAC formats, with SDI loop output. Input and output resolutions support up to 1920x1200, and analog audio embedding is supported. No additional drivers are required, and it supports Windows, Linux, macOS and other systems. Product Features 1. Supports converting 3G-SDI/HD-SDI/SD-SDI plus analog audio to USB UVC and UAC 2. With local 3G-SDI and analog audio loop-out 3. Supports resolutions up to 1920x1200 4. Supports 25/29.97/30/50/59.94/60 frame rates 5. Supports mainstream systems such as WIndows, Linux and Mac OS X 6. No additional driver installation required, plug and play 7. Full ESD protection on all ports 8. USB direct power Related Products
