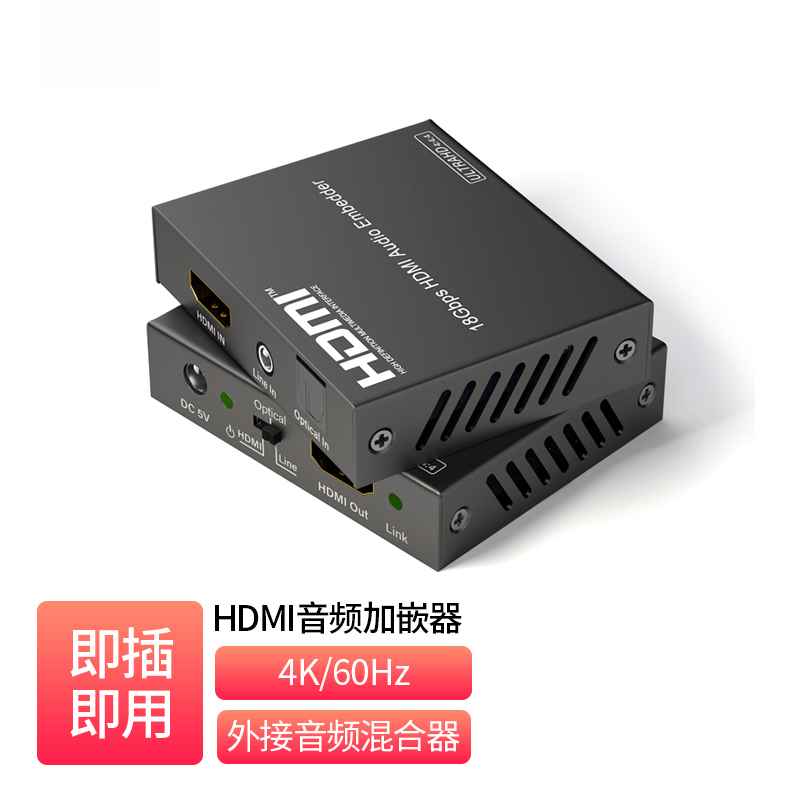

HDMI2.0 Audio Embedder _ CH-BE11A-H

Freely selects embedded HDMI audio, optical audio or analog stereo for the HDMI output

Description

Product Overview CH-BE11A-H is an audio embedder that inserts or replaces embedded audio for HDMI2.0 4K signals. It can embed one Toslink optical digital audio or analog stereo audio into HDMI, replacing the original HDMI embedded audio. Via a slide switch, users can select any of the original HDMI embedded audio, Toslink optical audio and analog stereo audio to output to the HDMI target device. Product Features 1. Supports pass-through of signals up to HDMI2.0 4k@60Hz 4:4:4 2. Supports HDR and CEC 3. Supports up to 7.1-channel common embedded audio, such as LPCM, Dolby TrueHD, DTS-HD Master Audio, etc. 4. Supports embedding Toslink optical digital or 3.5 analog stereo audio into HDMI 5. HDMI audio at the output can be selected among the original HDMI audio, Toslink optical audio or analog stereo audio 6. Full ESD protection on all ports 7. External DC 5V power adapter Related Products
